REAR VISION OBSERVATION SYSTEM 5" LCD

Description

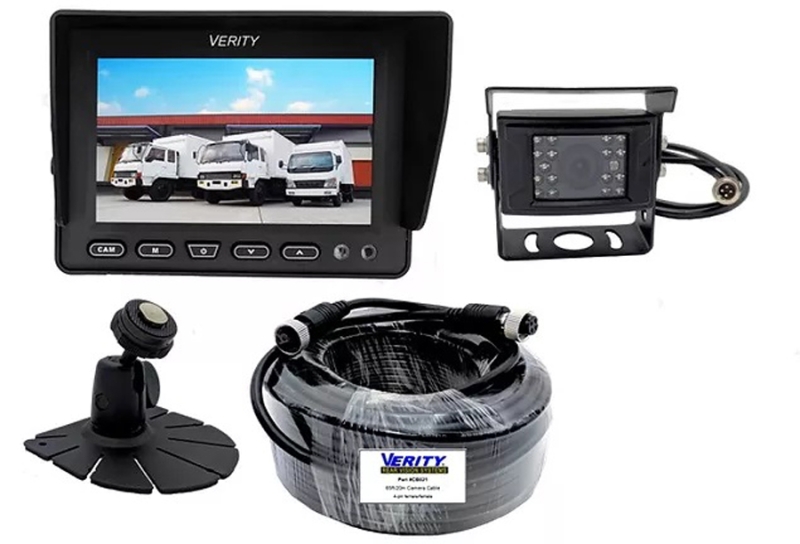

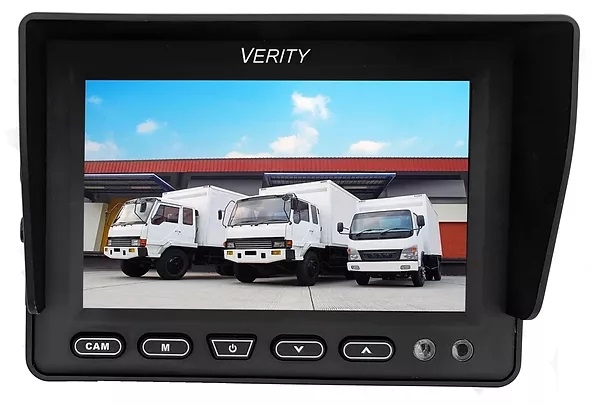

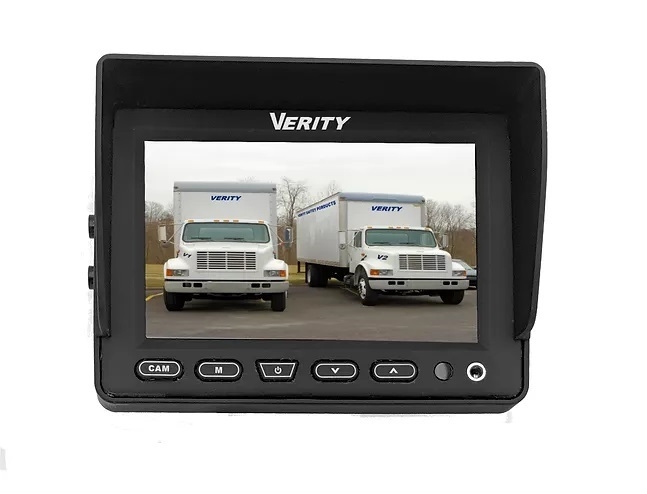

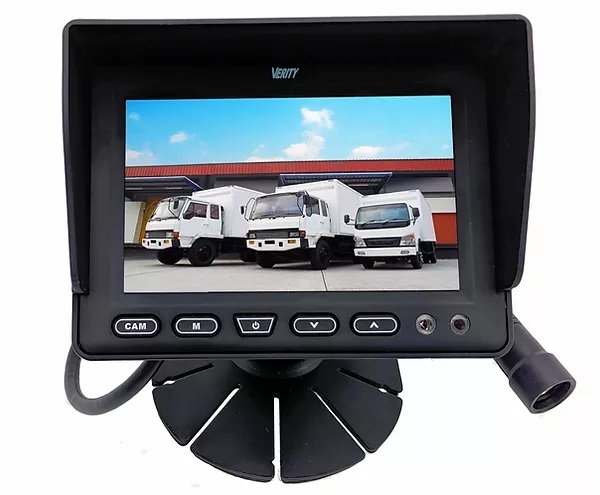

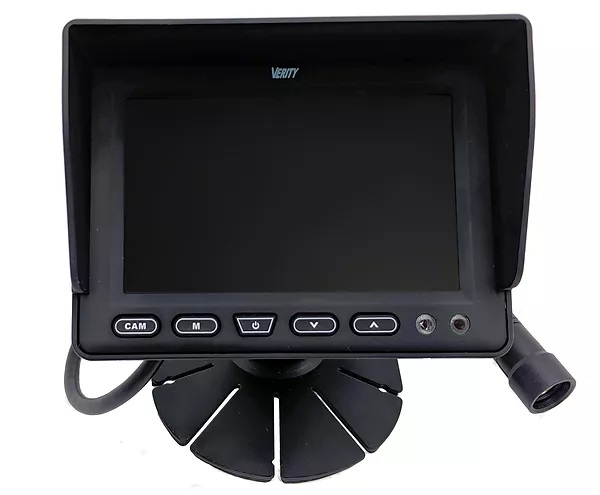

5" LCD 3-input color monitor w/13-pin harness, fan mount. IP68 waterproof color CCD rearview camera w/night. Vision and audio, 20m camera extension cable, manual. Monitor Specifications: Screen size: 5-inch digital screen (16:9). High Resolution: 800 x 480 Pixel (RGB). System: PAL/NTSC selectable. Contrast: 400:1. Brightness: 450 cd/m2. Power supply: DC 12V-24V with reverse polarity protection. Operation temperature: -30 degree -80 degree Celsius. Storage temperature: -20 degree -70 degree C. Monitor view angle: Horz. L(70) R(70). Vert. UP(50) DOWN(70). 3 AV with shrink tube labeled trigger wires, Auto blue screen if no signal on the activated channel. Size: 5 1/2"0 (H) 5 5/8" (W) 2 3/8" (D). Features: Removable HD sunshade, LCD screen, LED blue light buttons, high-quality processor, in-line waterproof fuse, easy to use OSD menu function via buttons: reversing image delay time 0-10s, Mirror/Normal image, plus horizontal flip, multi-language, speaker. Camera Specitications: Horizontal Resolution: 600 TV Lines. TV System: NTSC. Image Type: 1/3 Inch Color CCD Sharp (or equivalent). (no cheap off brands used). Effective Pixel: 510 x 492. Illumination: 0 Lux (built-in 17 high output IR LEDs for night vision). Aluminum Housing. Waterproof: IP69K (IP68K with microphone). Power Supply: DC 12V (powered from the monitor). Shockproof: 10G. Operating Temperature: -40 degree - 70 degree Celsius. Built-in Microphone. Viewing Angle: 170 degree.
