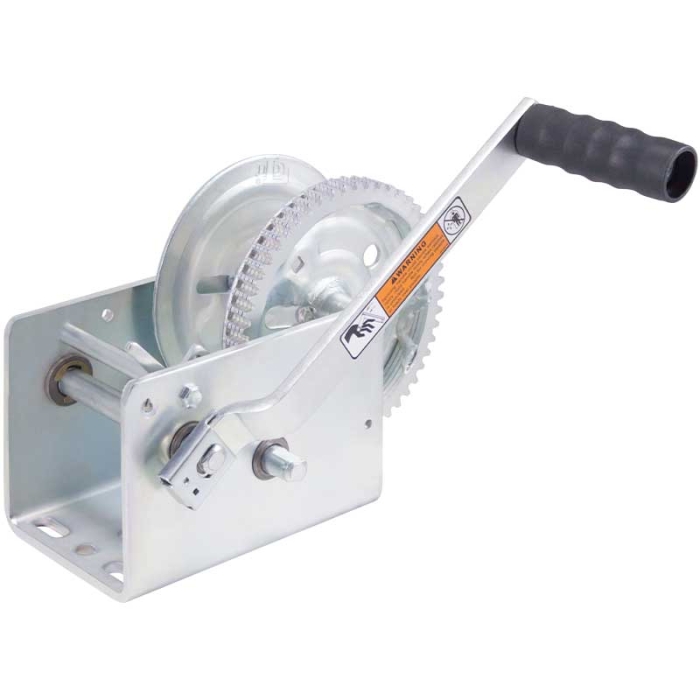

TRAILER HAND WINCH DL2500A 2500LB

Description

Dutton-Lainson 2-speed hand/manual/pulling/ratchet winch for horizontal pulling applications. 2,500 lb. capacity. 9-1/2" Quick-Attach handle with ergonomic handle grip. Freewheel operation for easy line removal. Zinc plated TUFFPLATE finish for additional rust resistance and longer life. Reversible ratchet allows cranking of cable or strap onto winch drum in either direction. Dual drive shaft system allows Quick-Attach handle to easily change from high speed to low gear cranking from one side, requiring less effort for heavier loads. Includes clamp kit to install cable onto winch drum. Rated Capacity 2500lb, Drum Hub Diameter: 1 1/8", Gear Ratio: 17.3.1/5.4:1. Handle Length: 9 1/2" Quick-Attach. Max. Mech. Adv. 229. Reversible Rachet 2 Speed Operation. . Drum Capacity Cable 5/16"X47'. Drum Capacity Strap 38'. STRAP NOT INCLUDED.

Replaces these catalog parts

This part is designated as the replacement for the following catalog parts.

• Two Speed Hand Winch - 2600 lb Part #mrvs_8588
• RATCHET WINCH MODEL #DL2500A* - CABLE NOT INCLUDED Part #mrvs_2673
• TWO SPEED HAND WINCH 2600 LB Part #mrvs_2683
